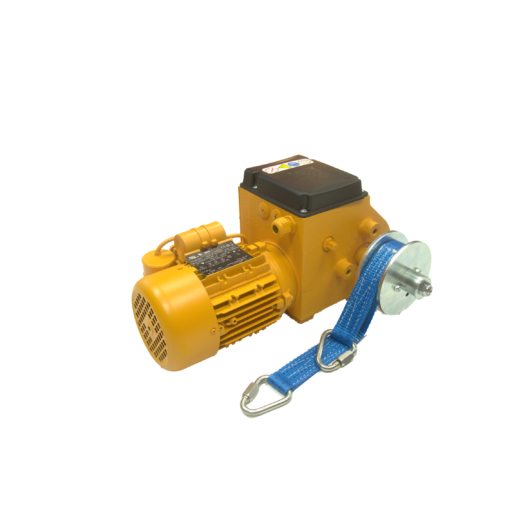

EcoDrive 300

Our EcoDrive winch systems contribute to creating the ideal climate in every building. The EcoDrive300 series covers a very wide range of applications such as natural ventilation, screening, hoisting or winching and daylight control. To create efficiency in houses the EcoDrive300 is built with a compact design that is robust and durable for great longevity. Operators will forget it’s there with its maintenance free build and whisper quiet performance. The EcoDrive 300 offers the perfect price to performance ratio for operation needs.

Part No#17001 Belt Drive
Part No#17003 Pipe Drive
Motor0.35 HP 115 1-Phase 60hz
Torque 300 Nm
Belt Speed28 in/min.
Pulls
2 Belts    1050 lbs/belt- 2100 lbs. total
1 Belt     809 lbs/belt

  • Available for pipe or belt drive applications
  • For the best climate and animal welfare.
  • Flexible installation.
  • Multiple inlets can be controlled at the same time.
  • Low-maintenance and low-noise.
  • Perfect Price/Performance Ratio
  • Compact and Smart Design
  • 3 Year Warranty

EcoDrive Application Specifications for Inlet Vents

DL:  75 Inlets
CSW:  140 Inlets
DirectAire:  230 Inlets
Tunnel Door:  130 ft. Long
Curtains  :   275 ft. Long
