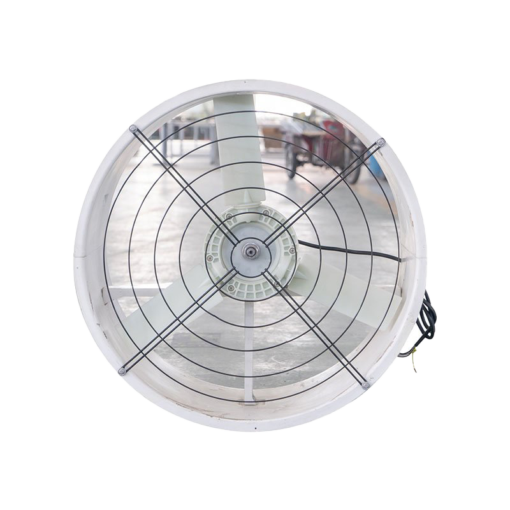

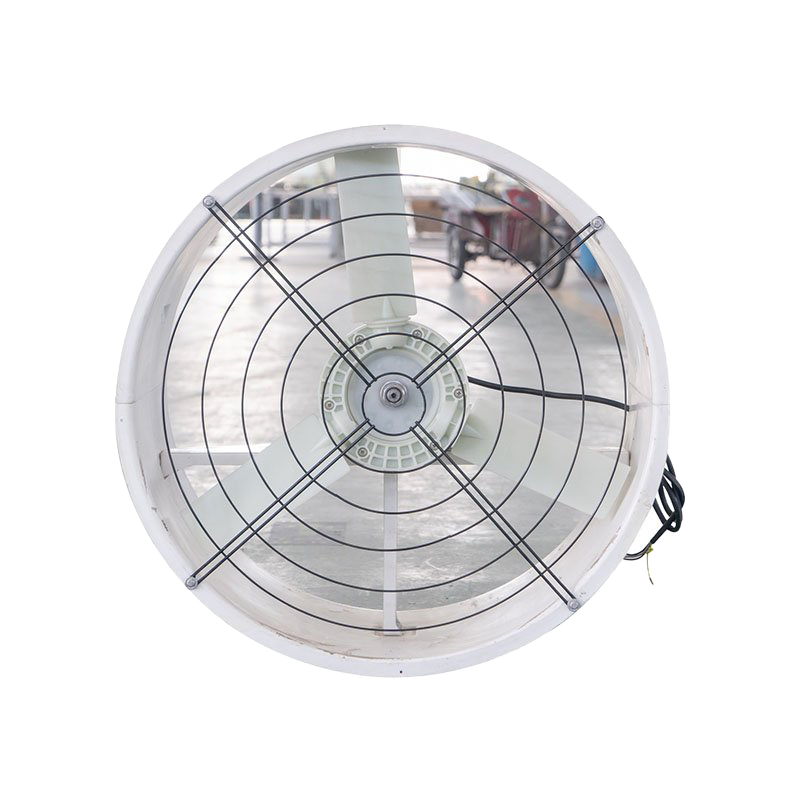

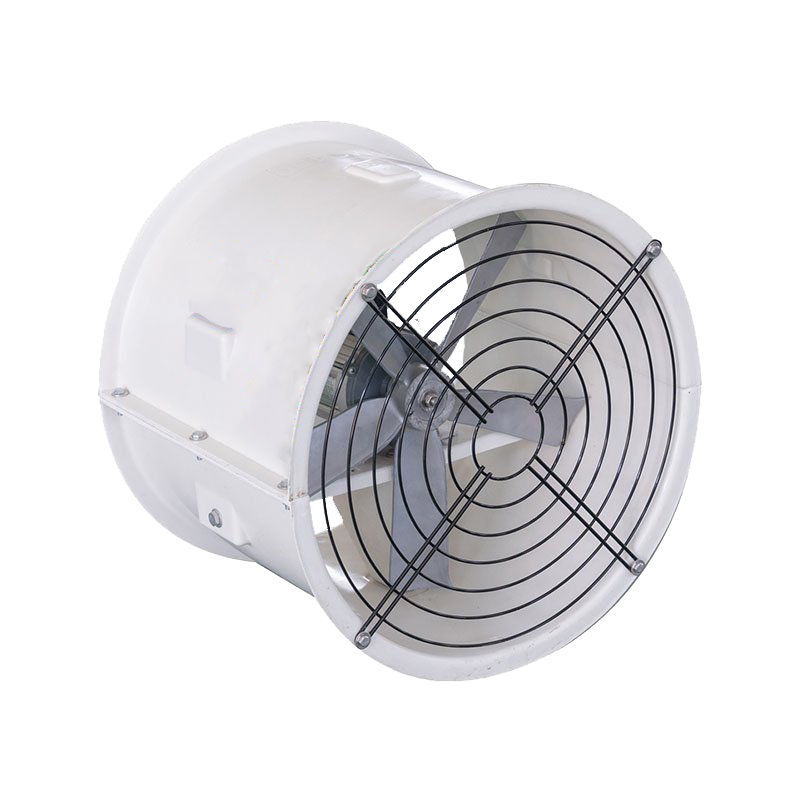

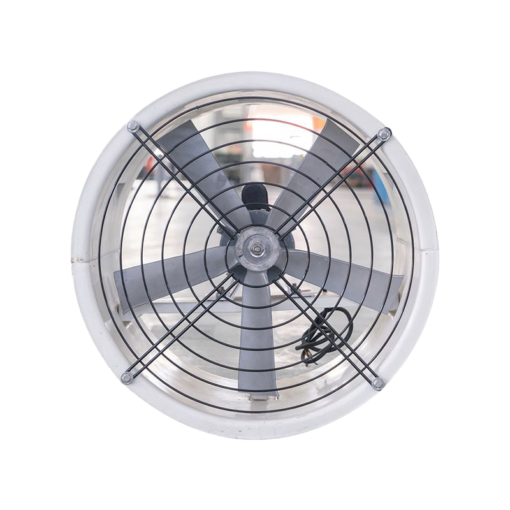

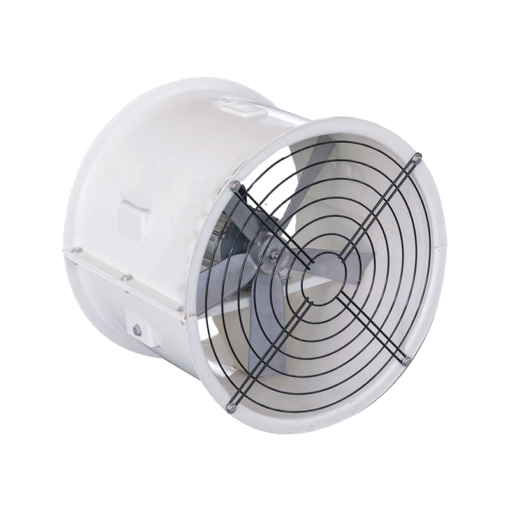

DX Circulation Fans
FEATURES
- Two-Speed Operation: Offers flexibility with high and low settings, allowing producers to adjust airflow according to specific environmental needs.
- High Thrust CFM: Designed to deliver powerful airflow, the DX Circulation Fans enhance air mixing, reducing heater cycles and energy costs.
- Durable Construction: Equipped with powder-coated steel blades and a brushless motor, these fans are built to withstand the demanding conditions of poultry houses.
- Energy Efficiency: The advanced design ensures optimal airflow with minimal energy use, leading to significant cost savings over time.
- Designed to cover 7″-9″ tall openings and widths of 48″ or smaller
Product Meta
Category: Layers Stir Fans
Product Description
BENEFITS
- Variety of sizes to match your requirements
- Orifice around prop for better control of air and higher centerline velocity.
- Fiberglass housing for superior corrosion resistance
- Mounting bracket makes for easy angle adjustment
- Enclosed housing throws air further than traditional basket fan
DX Circulation Fan Technical Data:
Diameter | Voltage | Hz | HP | CFM |
---|---|---|---|---|
14″ | 240/480 | 60 | 0.16 | 1400 |
18″ | 240/480 | 60 | 0.33 | 2700 |
22″ | 240/480 | 60 | 0.5 | 4400 |
28″ | 240/480 | 60 | 1.5 | 10430 |
