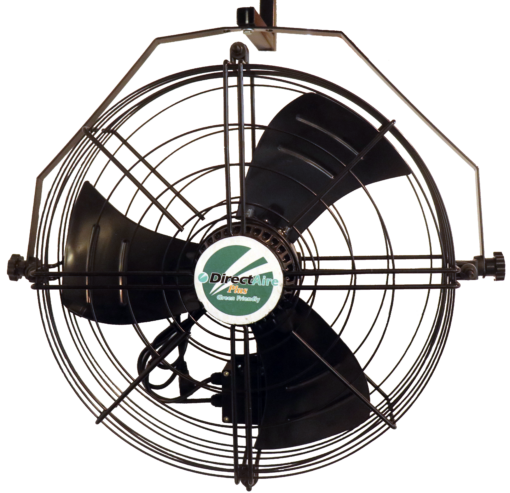

DirectAire Plus Stir Fans
Poultry growers have a lot of options when it comes to upgrading or updating their facilities, which is why we now offer a new line of Stir fan called the DirectAire Plus. This fan improves cubic feet per minute (CFM) by up to 15% and has a high-quality rotor motor. This results in less condensation, drier litter and improved health for the birds.
Improved ventilation from our DirectAire Plus Stir Fans creates a healthy poultry house environment. Well-ventilated houses have lower levels of bacteria, moisture and ammonia, which impact litter quality. Moisture and bacteria can lead to increased infections. Well-designed ventilation systems also support productivity by capturing warm air at the ceiling and mixing it before it reaches the birds directly, reducing stress and moisture content in the litter during cooler temperatures.
KEY FEATURES:
- 15% more CFM
- Two Speed, Rotor Motor
- Tested/Certified
- Powder Coated, Steel Blades
- IP54 Motor Protection
- Widespread Grill
- Included Mounting Bracket
Benefits:
- Reduces temperature stratification
- Less heater cycle times and lower fuel costs
- Reduced dirt buildup and easier cleaning of fan

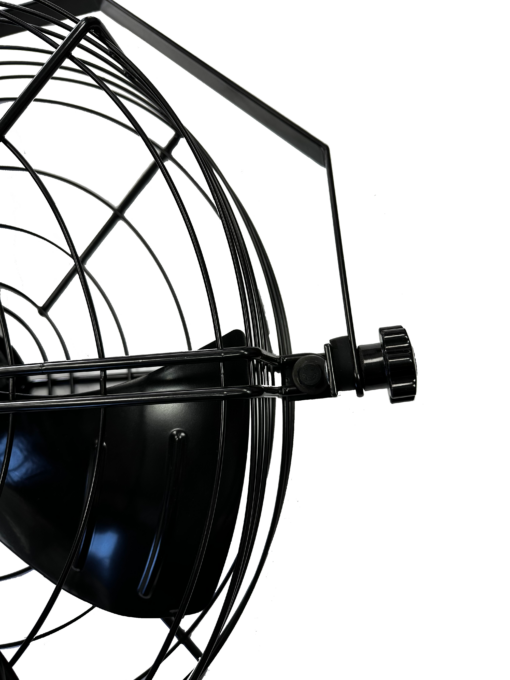

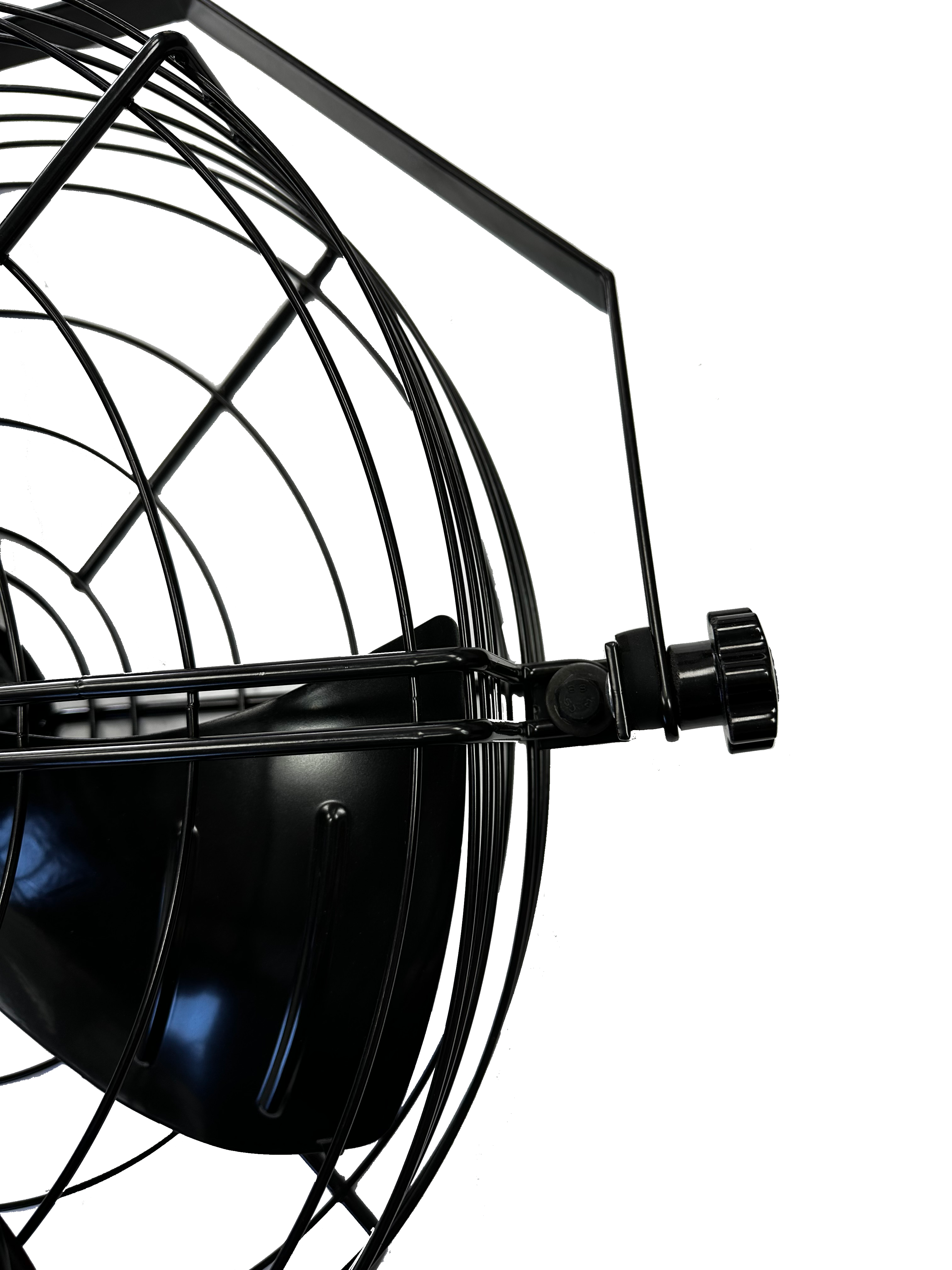

- Easily swivel and tilt fan for cleaning and to change direction/angle of house air circulation.
PRODUCT DETAILS:
18” Stir Fan | 20” Stir Fan | 24” Stir Fan | |
90718 | 90720 | 90724 | |
Fan Dimensions | 24”L x 24” W x 4.8” D | 25.6”L x 25.6”W x 5.1” D | 30”L x 30” W x 5.6”D |
High: | 2280 CFM | 2370 CFM | 3300 CFM |
Low: | 1970 CFM | 2040 CFM | 2810 CFM |
Bess Labs Test # | c22275 | c22274 | c22273 |
warranty | 3 year | 3 year | 3 year |
AMP: | 1.3 | 1.3 | 1.3 |
Volts: | 120 | 120 | 120 |
Hz: | 60 | 60 | 60 |
Motor: | 1/5 HP | 1/5 HP | 1/5 HP |

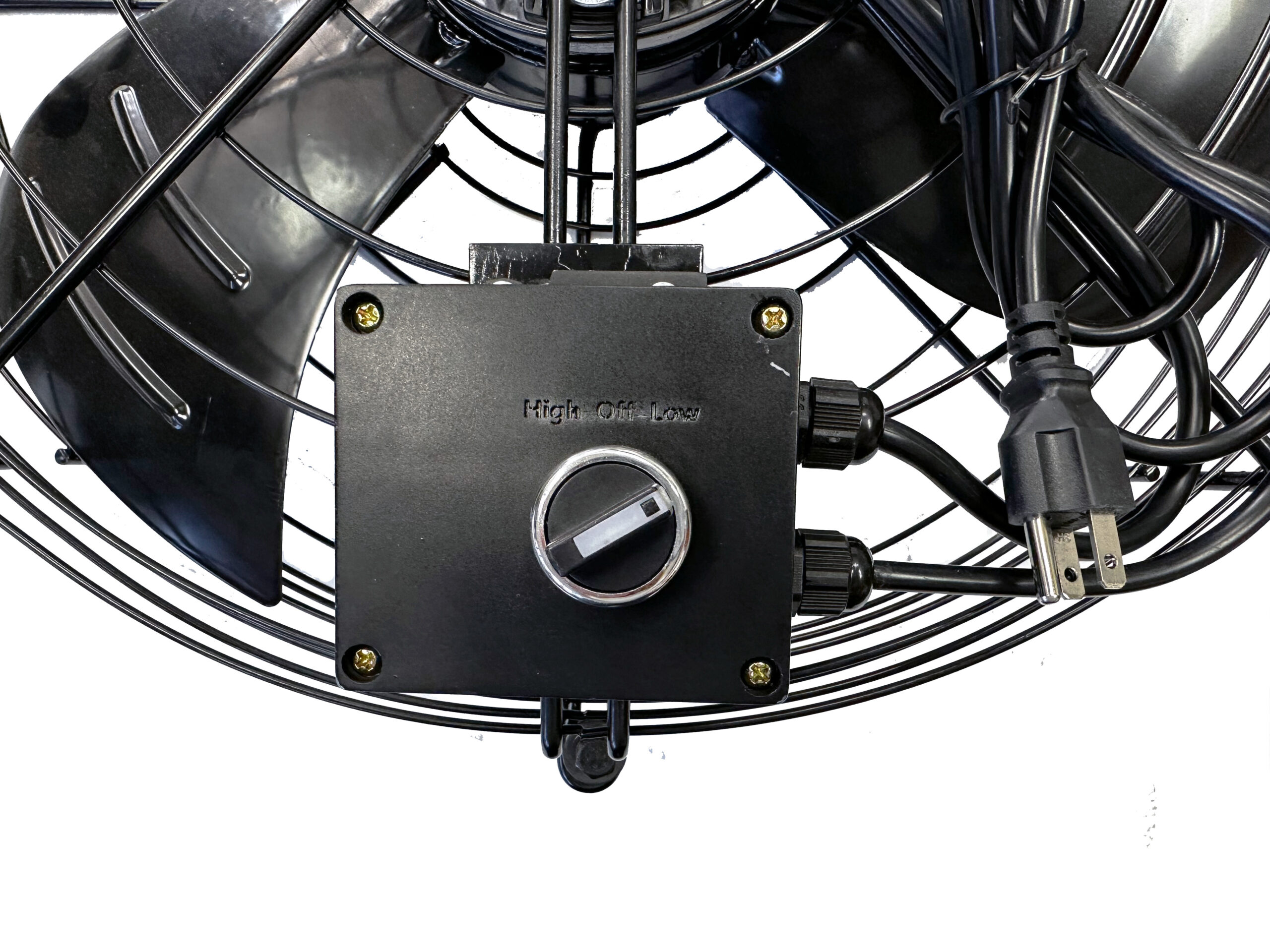

Two Speeds: | High/Low | High/Low | High/Low |
