JD2600 TWO-WAY CEILING INLET FULLY INSULATED FOR COLD WEATHER CLIMATES
The JD2600 Fully Insulated Bi-Flow Inlet is great for minimum to maximum ventilation when you need precise control of air movement.
JD2600 GRAVITY FULLY INSULATED CEILING INLET
GRAVITY Part No. 90841
CFM: 2,135 @ 0.05 SP
Bess Labs Test #05097
Rough Opening: 29” x 24.5”
Inlet OD: 30.50” x 27.00”
Made in Canada
JD2600 ACTUATED FULLY INSULATED CEILING INLET
ACTUATED Part No. 90840
CFM: 2,490 @ 0.05 SP
Bess Labs Test #05181
Rough Opening: 29” x 24.5”
Inlet OD: 30.50” x 27.00”
Made in Canada

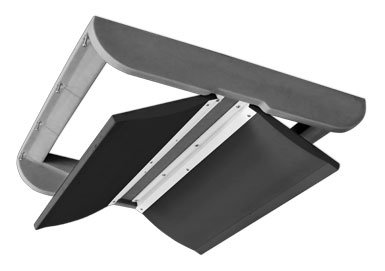

JFD2600 ACTUATED FULLY INSULATED CEILING INLET
Part 90842 (Winched)
Approx. 2,400 cfm @ .05 SP
Ship Weight: 13 lbs (5.9 kg)
Made in Canada
*Quoted to Order*
Product Description
JD2600 TWO-WAY CEILING INLET FULLY INSULATED FOR COLD WEATHER CLIMATES
The JD2600 Fully Insulated Bi-Flow Inlet is great for minimum to maximum ventilation when you need precise control of air movement. It is constructed of a single piece of fully insulated rotomolded housing frame with 1″ thick fully insulated lids to minimize condensation, dripping, and inlet freeze-up. Each JD2600 Bi-Flow Inlet has two frictionless Styrofoam PVC covered lids on a continuous PVC hinge that swings down to allow clean attic air into the main room. When bi-flow lids are closed, the inlet is fully sealed against air leakage and light.
Available in Actuated or Gravity Style Inlets. The JD2600 Actuated Inlet opens and closes with an actuator machine while the gravity option has counterweighted lids that open automatically as the static pressure increases in the building. With its durable construction the JD2600 Attic Inlet can withstand harsh agricultural environments and extreme cold weather conditions.
