DirectJet Curved Inlet
DirectJet 4431
Part No. – 90574CH
CFM: 3,266 @ 0.1 SP
Rough Opening: 44.5” x 13.5”
Inlet OD: 47.25” x 16.875”
DirectJet 4113
Part No. – 90576CH
CFM: 3,050 @ 0.1 SP
Rough Opening: 41.5” x 13.5”
Inlet OD: 44.50” x 16.875”
Product Description

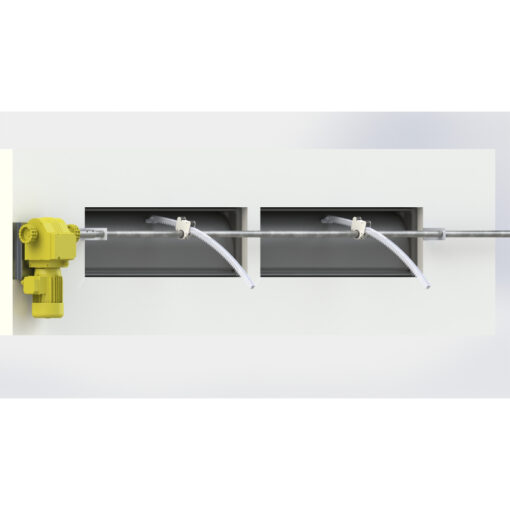

Our Rack and Pinion driven inlet is engineered for optimal air throw and distribution. Its straightforward design ensures minimal maintenance requirements. The air inlet is equipped with brush seals to eliminate air leakage when closed, ensuring efficient functionality.
Features
-

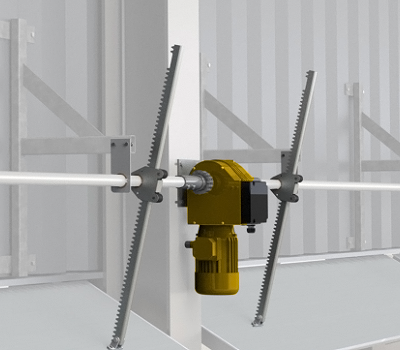

Rack and Pinion Drive operated for positive precise control
-
Close cell foam inlet with poly exterior
-
Minimal air leakage with robust seal
-
Designed entirely from corrosion resistant materials
-

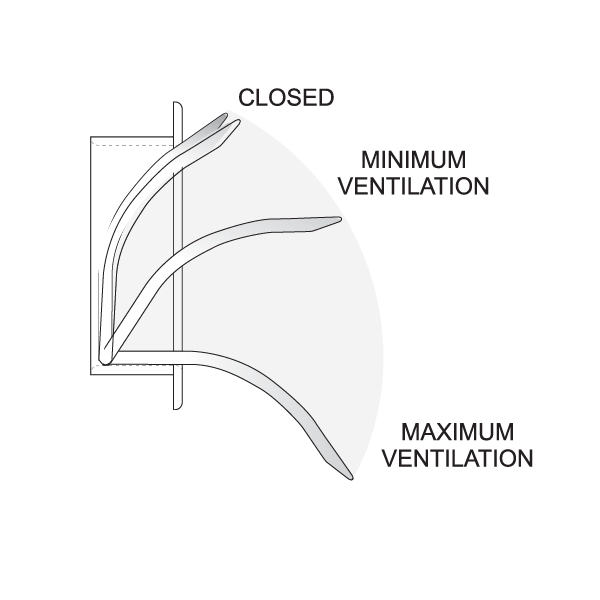

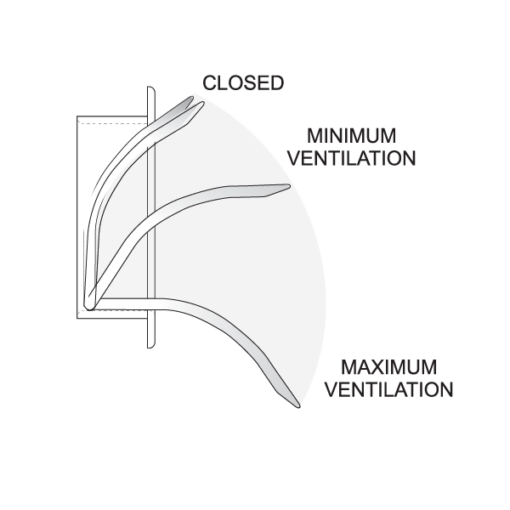

Curved blade directs air along the ceiling and mixes air at the center of the house
Stackable sizes available:
- Rough Opening: 86”x13.5”
- Rough Opening: 92”x13.5
