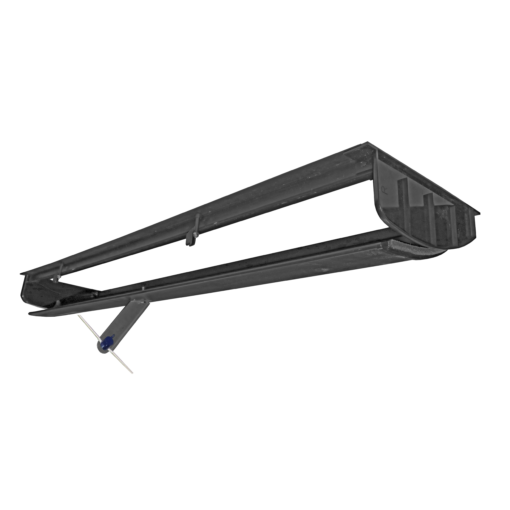

CSW4608 Insulated Actuated Ceiling Sidewall Inlet

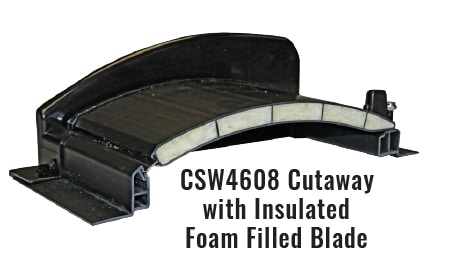

Double L is excited to introduce the patented CSW4608 Ceiling Sidewall Inlet to the swine industry. The CSW4608 is an actuated inlet with an aerodynamic, curved louver blade that immediately directs fresh air along the ceiling to the ceiling peak for maximum air mixing. It has a fully insulated blade to minimize sweating in cold climates and is constructed of all PVC construction that is resistant to corrosion and infestations.
Product Meta
Product Description
– Part 90569
– CFM: 2,549 cfm @ 0.1 SP
– Inlet OD: 49.5625″ x 11.1875″
– BESS Labs Test #19258
– Framed Opening: 46.5″ x 8.5″
– Approx . Weight: 6 lbs
– 8 inlets / box
Custom CSW 4608
US Patent 10,638,719
– Part #90577
– Inlet OD Width RO Width +1.75″
– Inlet OD Height 11.25″
