SWINE ACCESSORIES

Double L has a variety of swine accessories for your hog supply and equipment needs including Curtain Pockets, Two-Way Sorting Panels, Sow Feeders, Feed Hoppers, PVC Creep Dividers, and Thermostats. Double L's PVC Creep Dividers are designed for use in farrowing crates and can be field cut to size. They are economical, easy to install, lightweight yet very durable, and easy to clean. The 30" x 36" Two-Way Solid Sorting Panel was designed to address biosecurity issues. It is a lightweight yet extremely tough and durable SOLID hog sorting panel with no seams to harbor bacteria. The STF1415 HDPE Sow Feeder is very hygienic since there is not a front lip on the feeder, reducing feed buildup and bacteria. Much quieter than steel and lightweight, though very durable. Double L's PCP Rotomolded Curtain Pockets help seal curtain edges and protect hog building curtain from wind damage. Easily install in minutes with a handful of screws and can be easily power washed clean. The 4" Poly Feed Hopper is used to feed sows in hog farrowing barns. It is constructed of rotomolded polyethylene and has a tapered front to minimize feed loss. The PTH20 Pit Transition Hood and Housing is designed to be used with a 20" fan  while the STH24 Sidewall Transition Housing is designed to be used with a 24" fan and hood. Double L has 3 different thermostat options that are weather proof NEMA 3x enclosure that are resistant to high humidity, airborne contaminants, and most corrosive conditions with a temperature range of 40 degrees to 104 degrees. Each thermostat has a large easy to read knob and calibration. The T152-2 Two Speed Thermostat is designed to be used with fans that have a high / low built in. The T152-C Curtain Controller Thermostat is designed to control curtain - inlet actuators on temperature. The TH415 Single Stage Thermostat has a fast responding stainless steel sensor that resists corrosion and has a 2.5 differential.

PVC CREEP DIVIDERS

Part 12801 PVC Divider
Part 12560-14 Two-Way Post
Part 12560-20 U-Channel

20" high x 7/8" thick panels or
508 mm high x 22.2 mm thick
and can be field cut to fit


STF1415 HDPE SOW FEEDER

Part 16450
14"W x 15"H (355.6 x 381 mm)
Ship Weight: 7.25 lbs (3.3 kg)

Stainless Steel Lip Protector


30" x 36" TWO-WAY
SOLID SORTING PANEL

Part 16460
Framed Opening: 30" x 36"
Ship Weight: 14 lbs


PCP ROTOMOLDED
CURTAIN POCKETS

PCP1866
Part 16495
18" x 66"H (457.2 x 1,676.4 mm)
21 lbs / pr. (9.5 kg)

PCP1878
Part 16494
18"W x 78"H (457.2 x 1,981.2 mm)
22 lbs / pr. (10.0 kg)

PCP1884
Part 16498
18"W x 84"H (457.2 x 2,133.6 mm)
23 lbs / pr. (10.4 kg)


4" POLY FEED HOPPER

Part 16454
14"L x 6"W x 13.3"H
(355.6 x 152.4 x 336.6 mm)
Ship Weight: 3 lbs (1.4 kg)
Holds approx. 20 lbs (9.1 kg)

The 4" Poly Feed Hopper from Double L makes it easy to hand feed sows. Durable and easy to clean, the 4" Poly Feed Hopper has tapered sides.

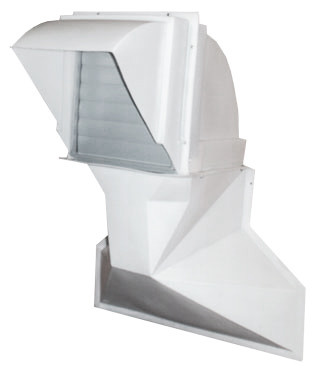

Pit Transition Hood and Housing

PIT TRANSITION HOOD AND HOUSING

PTH20 - 20 in hood, housing, and shutter

Designed to be used with a 20" fan, the hood consists of a 1-1/2 90 degree pit transition hood. A PVC shutter is included and is placed between the two hood parts before they are bolted together. The 90 degree hood may be mounted to a pump-out cover. The sidewall housing is designed to be used with the pit hood with the hood and housing bolted together. Heavy poly construction allows for back fill to normal ground level. 20" housing covers a maximum opening of 13" high x 50" wide.


24" Sidewall Housing

SIDEWALL TRANSITION HOUSING

STH24 - 24" Sidewall Housing

Double L's Sidewall Transition Housing is designed to be used with a 24" fan and hood. The Sidewall Transition Housing and Hood are bolted together. Heavy poly construction allows for back fill to normal ground level. 24" housing covers a maximum opening of 18" high x 50" wide.


T152-2 Two Speed Thermostat for barn barns

T152-2 TWO-SPEED THERMOSTAT

Part 50167

Double L's T152-2 Two-Speed Thermostat is designed to be used with fans that have a high/low speed built-in. The T152-2 Two-Speed Thermostat has a 316 stainless steel sensor for quick response and a large easy to read knob and calibration. The 152-2 Thermostat water-resistant NEMA 4x enclosure is resistant to high humidity, airborne contaminants, and most corrosive conditions. Temperatures range from 40º to 100ºF.



ELECTRICAL RATINGS:
Volts A.C. 50/60 HZ
120
240
Full Load Amps.
12
10
Lock Rotor Amps
48
36
Non Inductive
16
16
Pilot Duty 125 VA 120/240 VAC
-
-
T`52-C Curtain Controller Thermostat

T152-C CURTAIN CONTROLLER THERMOSTAT

Part 50168

Double L's T152-C Curtain Controller Thermostat is designed to control curtain - inlet actuators on temperature. 316 stainless steel sensor for quick response. Large, easy to read knob, and calibration. A five-minute cycle timer may enhance operation of system. Simply tie the power supply to T152-C. The T152-2 Thermostat water-resistant NEMA 4x enclosure is resistant to high humidity, airborne contaminants, and most corrosive conditions. Temperatures range from 40º to 100ºF.

ELECTRICAL RATINGS:
Volts A.C. 50/60 HZ
120
240
Full Load Amps.
12
10
Lock Rotor Amps
48
36
Non Inductive
16
16
Pilot Duty 125 VA 120/240 VAC
-
-
TH415 Single Stage Mechanical Thermostat

TH415 SINGLE STAGE THERMOSTAT

Part 50165

Double L's TH415 Single Stage Mechanical Thermostat has a fast responding stainless steel sensor that resists corrosion and has a 2.5 degree differential. Simple calibration in field. Thermostat water-resistant NEMA 4x enclosure resistant to high humidity, airborne contaminants, and most corrosive conditions. Temperatures range from 40º to 100ºF.

ELECTRICAL RATINGS:
Volts A.C. 50/60 HZ
120
240
Full Load Amps.
12
10
Lock Rotor Amps
48
36
Non Inductive
16
16
Pilot Duty 125 VA 120/240 VAC  - -
