Swine Farrowing Floors

Double L has a variety of farrowing floor options for your swine needs. Plastic / cast combination floors, woven wire, tri-bar creep / ValuCast combination, and tri-bar / Schonlau cast combination. A farrowing floor should be cool for the sow and warm for the little pigs.

Protect your investment with Double L's combination floor systems - cast iron under the sow and Maxima polypropylene slats in the creep area.  The cast iron provides excellent traction for the sow, is durable yet comfortable, minimizes possible teat and foot damage, helps prevent abrasions, and cleans well. The cast iron is cool for the sow while it is uncomfortable for the little pigs so they are inclined to stay off of it and less likely to get crushed. The plastic in the creep area is non-conductive and does not rob body heat from the little pigs. Thus, little pigs experience less chilling and fewer diseases and scours with Filter-Eeze polypropylene flooring. Producers reported they save at least one pig per litter from a crush death, making the IVP57 and PS57 Farrowing Floors very cost effective.

IVP Farrowing Floor with ValuCast Cast Iron Slat and Plastic Creep Slat

Model IVP57 SWINE FARROWING FLOORS

Interlocking ValuCast Cast Iron & Heavy-Duty Filter-eeze®
Plastic Polypropylene Creep Slat with PermaBeam & End Supports

Available in 7 foot, 7.5 foot, and 8 foot lengths

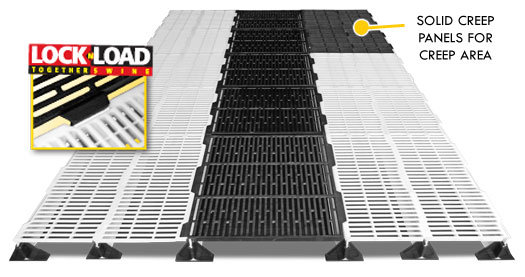

IVP68 Farrowing Floor for Hog Barn

MODEL IVP68 SWINE FARROWING FLOORS

Interlocking ValuCast Cast Iron & Heavy-Duty Filter-eeze® Plastic Polypropylene Creep Slat with PermaBeam, End Supports, and Solid Creep Panels for Creep Area

Available in 7 foot, 7.5 foot, and 8 foot lengths

PS57 Schonlau and Plastic Creep Floor

MODEL PS57 SWINE FARROWING FLOOR

Schonlau & Plastic Creep Flooring with  PermaBeam & End Supports

Available in 7 foot, 7.5 foot, and 8 foot lengths

The WV57 ValuCast and Ultra-Slat Creep Flooring is a self-supporting farrowing floor with corrosion-resistant hot-dipped galvanized steel creep and frame. It is constructed with 3-gauge woven wire.

WV57 Farrowing Floor

MODEL WV57 SWINE FARROWING FLOOR

ValuCast & Ultra-Slat Steel Creep Flooring

The TV57 ValuCast and Triangular Steel Creep Farrowing Floor is a self-supporting farrowing floor that is the cleanest creep floor on the market. Its triangular steel bars have 50% openings that allow manure to easily filter into the hog pit. The creep steel is mig welded, which is four times stronger than resistance welding and is built to withstand the constant movement and heavy weight of pigs. Constructed of corrosion-resistant, hot-dipped galvanized steel and durable ValuCast cast iron floor, the TV57 Tri-Creep Farrowing Floor is an excellent combination farrowing floor. Easy to install and power wash clean.

MODEL TV57 SWINE FARROWING FLOOR

ValuCast & Triangular Steel Creep

  • Farrowing floor with Lock-n-Load assembly
  • Self-supporting farrowing floor
  • Corrosion-resistant hot dip galvanized steel creep
  • The cleanest creep floor
  • 50% opening in creep area
TS57 Swine Farrowing Flooring

MODEL TS57 SWINE FARROWING FLOOR

Schonlau & Triangular Steel Creep

  • Stronger cast iron with greater weight capacity
  • Farrowing Floor with Lock-n-Load assembly
  • Self-supporting farrowing floor
  • Corrosion-resistant hot dip galvanized steel creep
  • The cleanest creep floor
  • 50% opening in creep area
