HA24-24”Linear Actuator

ac

HA24-24" Linear Actuator is Great for Actuating GC1140 Gravity Ceiling Inlet Closed.

Part No. 90880
AMP: 1.0 110 Volts
50 / 60 Hz
Max Speed: 5.3 mm / sec
Max Self-Locking: Approx. 772 lbs / 350 kg Max Load: Approx. 772 lbs / 350 kg
Weight: 19 lbs / 9 kg

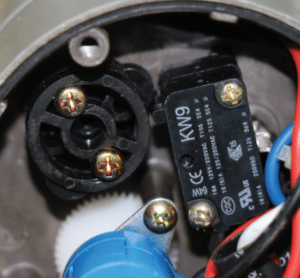

• High Limit Safety Switch.
• Smooth, quiet operation.
• Totally enclosed and protected from oxidation - great for even harsh environments.
• Duty Cycle: Max 20%, 12 min. / hr.
• Heavy-duty high precision sealed 10 kilohm feedback potentiometer.

a3

HA24-24”Linear Actuator

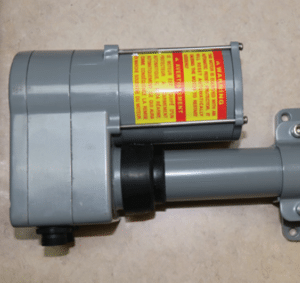

a4

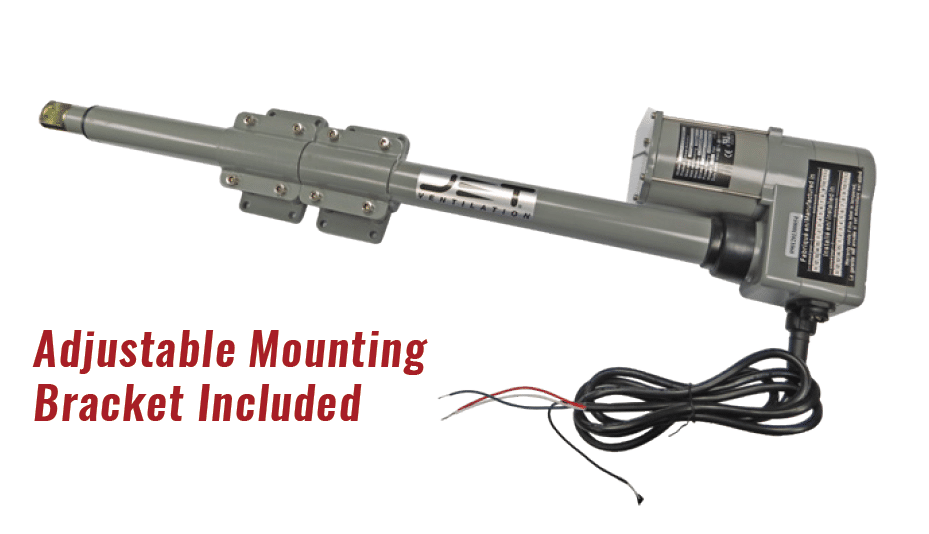

Adjustable Mounting Bracket Included

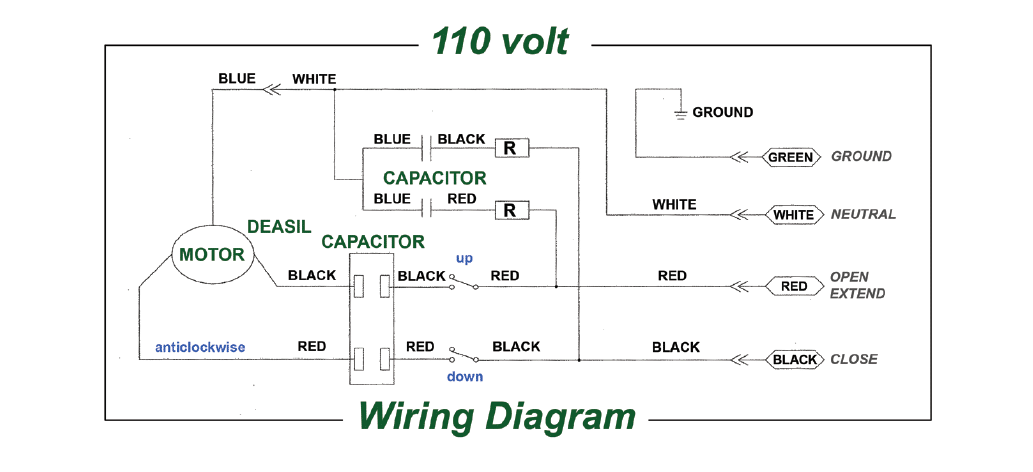

ac2
