Layers Accessories

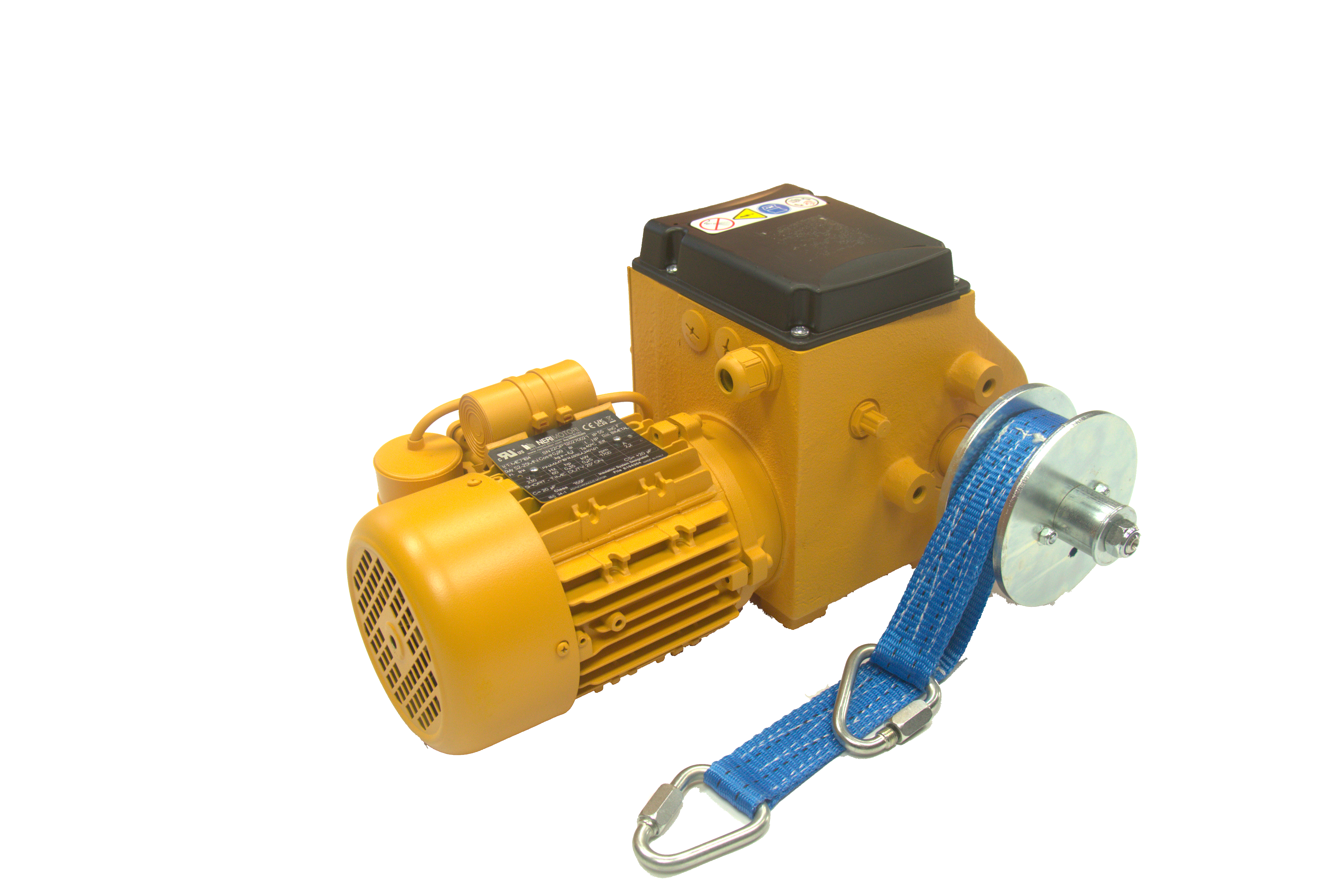

EcoDrive 300

  • Part No         #17001 Belt Drive
  • Part No         #17003 Pipe Drive
  • Motor            .35 HP 115 1-Phase 60hz
  • Torque           300 Nm
  • Belt Speed    28 in/min.
  • Pulls
    2 Belts    1050 lbs/belt- 2100 lbs. total
    1 Belt       809 lbs/belt

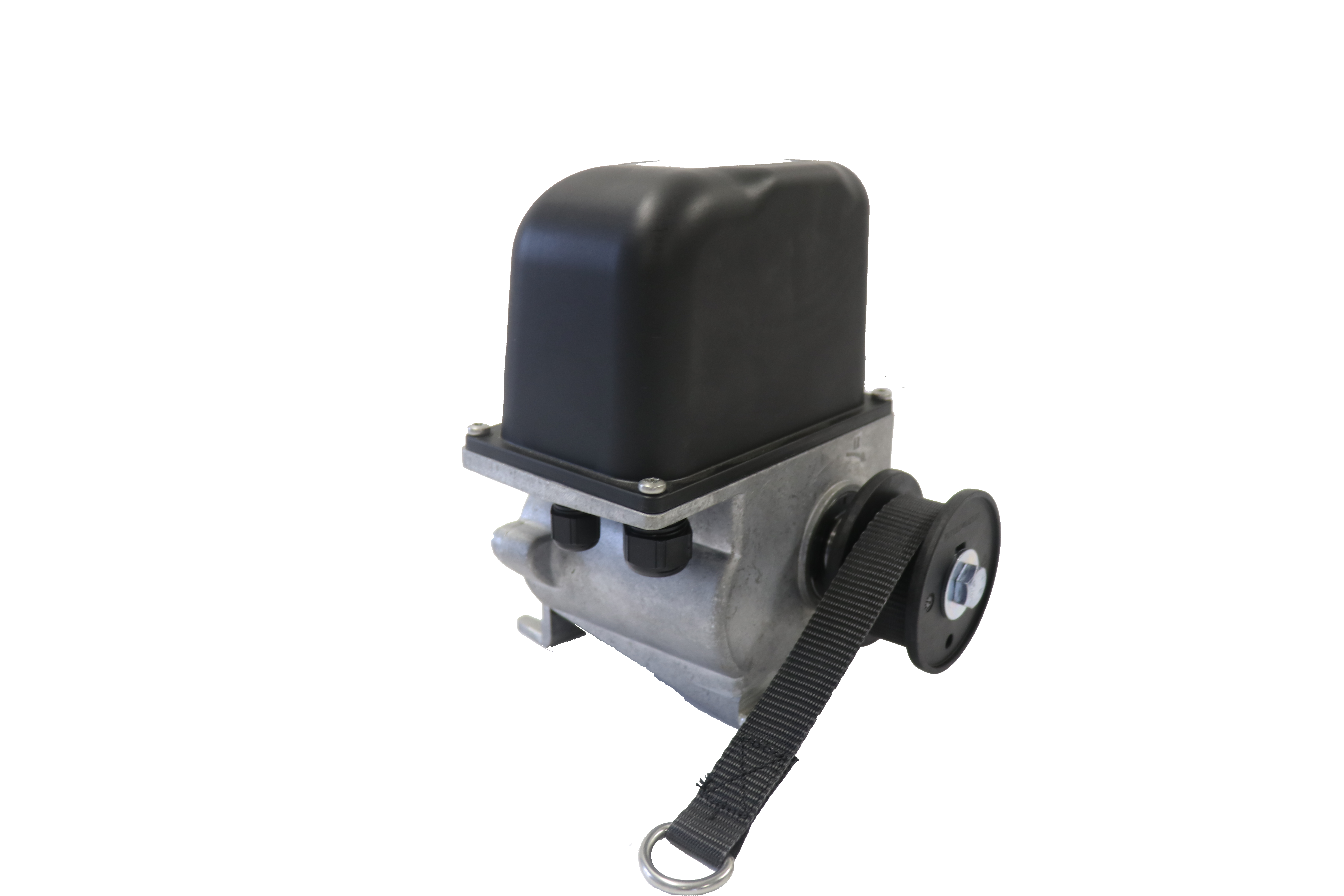

EcoDrive 90

Specifications

Part No                17002
Motor                   24VDC
Torque                 90 Nm
Belt Speed          6 in/min.
Pulls

           2 Belts     386 lbs/belt – 772 lbs. total

           1 Belt       750 lbs/belt

TERMOSTATO DE DOS VELOCIDADES T152-2

VALORES ELÉCTRICOS:
   Voltios A.C. 50/60 HZ
120
240
   Amperios a plena carga.
12
10
   Amperios de Rotor Bloqueado
48
36
   No Inductivo
16
16
   Servicio Piloto 125 VA 120/240 VAC  –



Pieza 50167

Double L’s T152-2 Two-Speed Thermostat is designed to be used with fans that have a high/low speed built-in. The T152-2 Two-Speed Thermostat has a 316 stainless steel sensor for quick response and a large easy to read knob and calibration. The 152-2 Thermostat water-resistant NEMA 4x enclosure is resistant to high humidity, airborne contaminants, and most corrosive conditions. Temperatures range from 40º to 100ºF.

TERMOSTATO CONTROLADOR DE CORTINA T152-C

Pieza 50168
Double L’s T152-C Curtain Controller Thermostat is designed to control curtain – inlet actuators on temperature. 316 stainless steel sensor for quick response. Large, easy to read knob, and calibration. A five-minute cycle timer may enhance operation of system. Simply tie the power supply to T152-C. The T152-2 Thermostat water-resistant NEMA 4x enclosure is resistant to high humidity, airborne contaminants, and most corrosive conditions. Temperatures range from 40º to 100ºF.



VALORES ELÉCTRICOS:
   Voltios A.C. 50/60 HZ
120
240
   Amperios a plena carga.
12
10
   Amperios de Rotor Bloqueado
48
36
   No Inductivo
16
16
   Servicio Piloto 125 VA 120/240 VAC  –

TERMOSTATO DE UNA ETAPA TH415

Pieza 50165

Designed to provide precise control of heating and cooling Double L’s TH415 Single Stage Mechanical Thermostat is the perfect addition to poultry houses. Constuction of the thermostat gives it a water-resistant NEMA 4x enclosure resistant to high humidity, airborne contaminants, and most corrosive conditions. The TH415 is equipped with a fast-responding stainless steel sensor that resists corrosion and has a 2.5 degree differential. While in the field operators can simply recalibrate the thermostat with its adjustable dial. A 316 stainless-steel sensing coil is mounted on the side of the watertight ABS plastic enclosure.

With a temperature range of 40-104 degrees Fahrenheit, the TH415 is designed for controlling ventilation and heating equipment in even the harshest of Ag poultry house environments.



VALORES ELÉCTRICOS:
   Voltios A.C. 50/60 HZ
120
240
   Amperios a plena carga.
12
10
   Amperios de Rotor Bloqueado
48
36
   No Inductivo
16
16
   Servicio Piloto 125 VA 120/240 VAC  –
